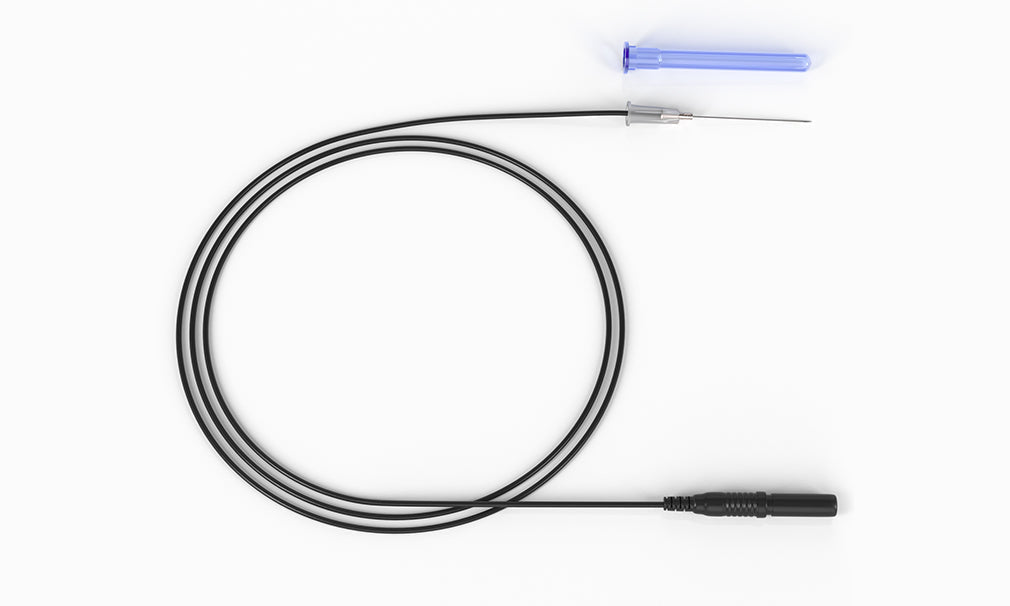

EMG needle electrodes - monopolar, concentric, and injectable types compared

How to Choose the Right EMG Needle Electrode: A Guide for Clinics

Introduction

Selecting the right EMG needle electrode is one of the most important decisions a neurologist, physiatrist, or electromyographer makes in the clinical setting. The wrong electrode can compromise signal quality, patient comfort, and diagnostic accuracy. This guide breaks down the key electrode types, sizing considerations, and brand comparisons to help your clinic make confident purchasing decisions.

Types of EMG Needle Electrodes

Monopolar Needle Electrodes

Monopolar needles are the most widely used electrode type in clinical EMG. They consist of a single, insulated needle with only the tip exposed, paired with a separate surface reference electrode. Key advantages include:

  • Lower impedance, resulting in cleaner signal pickup
  • Generally less painful for patients due to their finer gauge
  • Cost-effective for high-volume practices
  • Available in disposable formats for infection control compliance

Disposable monopolar needle electrodes are the standard of care in most modern EMG labs, eliminating the risk of cross-contamination and reducing sterilization overhead.

Concentric Needle Electrodes

Concentric (coaxial) needles contain both the active and reference electrodes within a single cannula - the active wire runs through the center of the needle shaft. This design offers:

  • Smaller recording territory, ideal for precise motor unit analysis
  • No need for a separate reference electrode
  • Preferred in research settings and for detailed MUAP (Motor Unit Action Potential) morphology studies
  • Excellent for facial, laryngeal, and other small muscle groups

Technomed disposable concentric needles are a popular choice for labs that require consistent, high-fidelity recordings without the burden of reprocessing reusable electrodes.

Injectable Monopolar Needle Electrodes

Injectable monopolar electrodes are a specialized variant designed for use in botulinum toxin injection guidance. They serve a dual purpose: EMG recording to confirm needle placement within the target muscle, and delivery of the therapeutic agent through the hollow cannula. Benefits include:

  • Simultaneous EMG guidance and injection in a single step
  • Reduces procedure time and patient discomfort
  • Critical for accurate botox placement in spasticity management, dystonia, and cosmetic procedures
  • Available in a range of lengths to reach deep muscle groups

Choosing the Right Length and Gauge

Electrode selection should always be matched to the target muscle's depth and the patient's body habitus. Here are general clinical guidelines:

Gauge (Diameter)

  • 25-26 gauge: Standard for most limb muscles; good balance of patient comfort and signal quality
  • 28-30 gauge: Finer needles for facial muscles, pediatric patients, or pain-sensitive individuals
  • 23-24 gauge: Heavier gauge for deep paraspinal or gluteal muscles where rigidity aids insertion

Length

  • 25 mm (1 inch): Superficial muscles - first dorsal interosseous, facial muscles, tibialis anterior in lean patients
  • 37-50 mm (1.5-2 inches): Mid-depth muscles - biceps, triceps, gastrocnemius, vastus lateralis
  • 75 mm (3 inches): Deep muscles - paraspinals, iliopsoas, gluteus medius, obturator internus
  • 100+ mm: Morbidly obese patients or very deep targets such as the piriformis

When in doubt, err on the side of a longer needle - a needle that is too short cannot reach the target, while a longer needle simply requires careful depth control.

Brand Comparison: Rhythmlink, Technomed, and Others

Brand Electrode Types Key Strengths Best For
Rhythmlink Monopolar, Concentric, Injectable Wide product range, strong US distribution, competitive pricing High-volume EMG labs, multi-specialty clinics
Technomed Concentric, Monopolar Precision manufacturing, consistent impedance, research-grade quality Academic centers, detailed MUAP analysis, research protocols
Other Brands Varies May offer cost savings or niche specifications Budget-conscious practices with specific requirements

When evaluating brands, consider not just unit price but also lot-to-lot consistency, packaging sterility assurance, and compatibility with your EMG system's input impedance requirements.

Infection Control Considerations

All needle electrodes used in modern clinical practice should be single-use disposable. Reusable needle electrodes, while historically common, carry significant risks of prion transmission (including Creutzfeldt-Jakob disease) that cannot be eliminated by standard sterilization protocols. The CDC and major neurology societies recommend disposable needles as the standard of care.

Shop EMG Needle Electrodes

International Neuro Medical carries a curated selection of disposable EMG needle electrodes from trusted manufacturers:

Have questions about which electrode is right for your clinic's needs? Contact our team - we're happy to help you find the right fit.
